NIFTIE Brackets
TIPS & TRICKS
Below are some helpful suggestions on how to use and customize the NIFTIE brackets for your project. Check this section often for updates.
If you are still unsure, please reach out with any questions

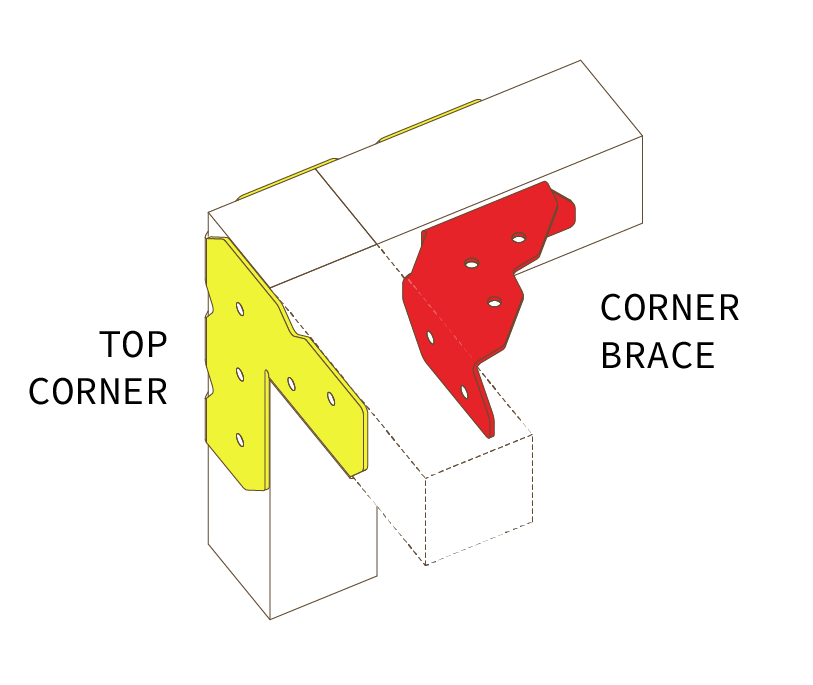

Standard Corner Joint
A standard corner joint is made using a TOP CORNER BRACKET and a CORNER BRACE BRACKET
While you can just use the TOP CORNER on it's own to connect 3 pcs of wood, the CORNER BRACE significantly reinforces the joint and also helps with assembly - especially if you need to take it apart and rebuild in the future

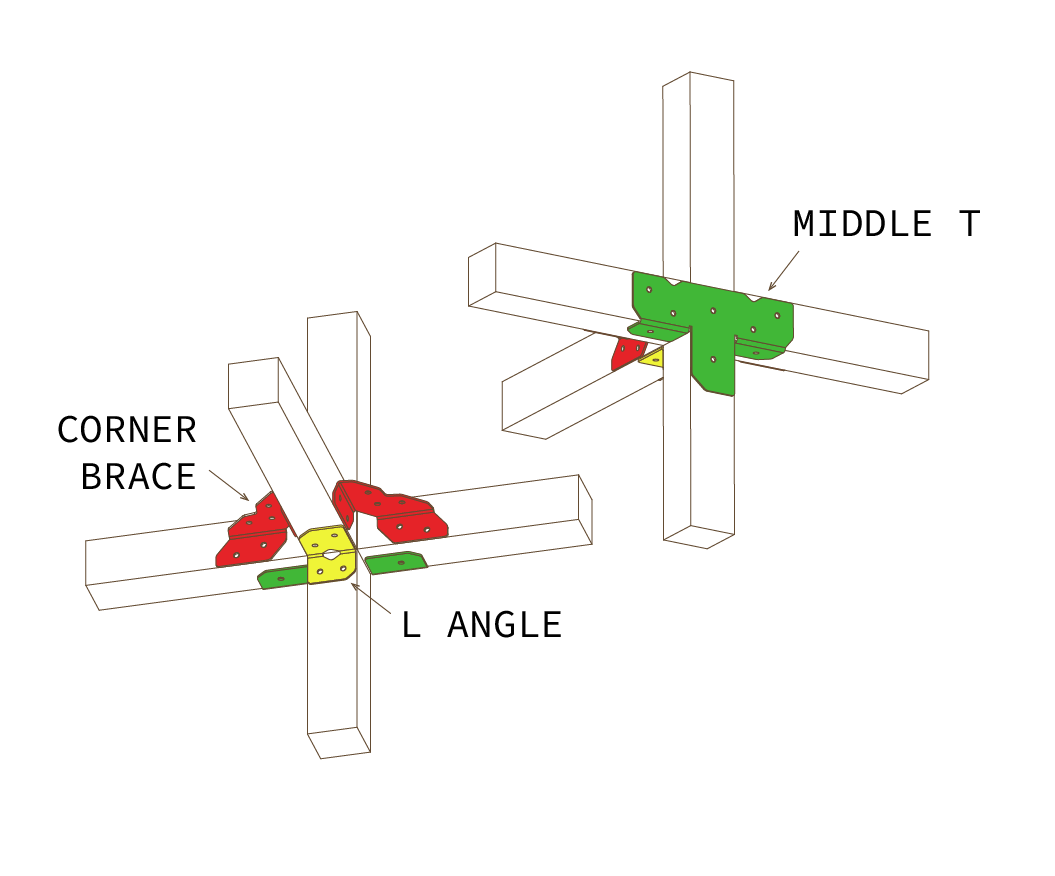

Strong Center Joint
If you need a super strong center joint - especially useful for larger shelving units - use a MIDDLE T BRACKET on the front, (2) CORNER BRACE BRACKETS on the insides (align flush to the bottom of the 2x2's for a inset shelf), and an L ANGLE BRACKET below the center rail
Corner Brace:
Overlay vs. Inset Surfaces
For overlay / top surfaces, align your brackets so they they sit flush (or a hair below) the top edge of your 2x2's.
For inset shelves, align the brackets so that they are flush with the bottom edge of your 2x2's. Make sure you're using 1/2" thick material & 1/2" L screws so they won't poke through.

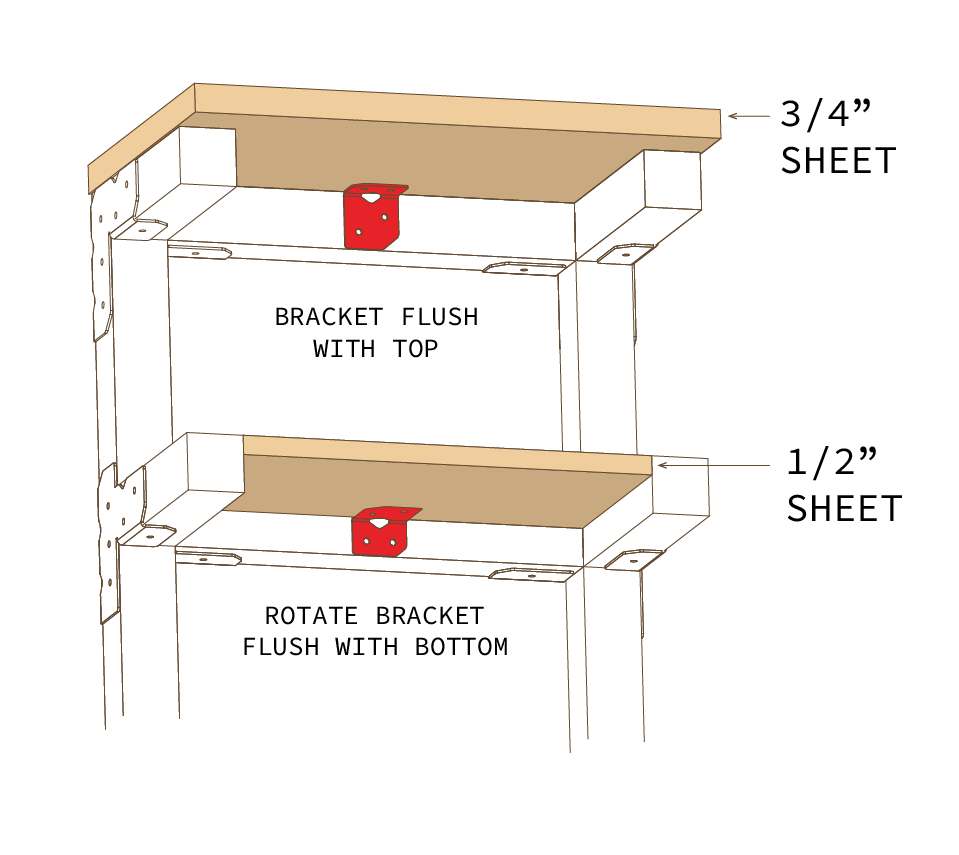

L Angle:
Overlay vs. Inset Surfaces
For overlay / top surfaces, orient your L BRACKET so that the long side is facing down and align with the top or bottom of your 2x2
For inset shelves, orient your L BRACKET so that the short side is facing down and align with the bottom of your 2x2.
Make sure you're using 1/2" thick material & 1/2" L screws so they won't poke through.
